9. JET 系列楔型彈性線夾及絕緣罩 JET series wedge elastic type clamp and insulating shield
■ 用 途 Application
JET 系列楔型線夾適用于架空配電線路中導線的非承力接續，適用于鋁接線或架空絕緣鋁芯線，絕緣罩或線夾配套使用，起絕緣防護作用。
JET series wedge clamp is suitable for no-bearing connecting of conductor for overhead distribution circuit,alsk for mating aluminum connection,overhead insulation aluminum core wire,insulation shead or clamp.it takes effect on protection.
■ 結構特點 Structure feature
1. 非磁性材料，無電能損耗，故能達到節能之目的
2. 接觸性能好，楔形彈力線夾與導線的接觸面大，夾緊力恒定，直流電阻比率一般能達到0.85~0.9之間
3. 過載能力強，楔形彈力線夾，過載能力能達一核定電流2倍以上
4. 連接可靠，永不脫落
5. 熱循環性能好，始終在直流電阻比率1以下不運行
6. 免檢修、零故障、長壽命之目的
7. 適用于各種導線組合，適用性強，配套絕緣罩，實現線路絕緣化。
.1.No magenetic material.without electric energy wasting,it can get the goal of savng energy
2.Good contacting perfirmance,big contacting surface for wedge elastic clamp and conductor,stable clamping force,the rate of DC
resistance is 0.85~0.9
3.Strong overload capacity,wedge elastic clamp and over load capacity is 2 times of rated current,
4.Reliable connection,no dropping for ever
5.Good thermal circle performance,operating under the rate of DC resistance for less than 1 all thew time
6.Gail the aim of free maintenance,no-failure and long life
7.Suitable for kinds of conductor composite,strong applicability,mating insulation sheath,it relizes circuit insulation
■ 絕緣罩性能特點 Insulation cover performance feature
◆ 工頻耐壓: ≥18kV保壓1分鐘不擊穿
◆ 絕緣電阻：＞1.0x1014Ω
◆ 環境溫度：-30℃~90℃
◆ 耐氣候性能：經人工氣候老化試驗1008小時后性能良好
◆ Withstand voltage: ≥18kV keep voltage one minute not breakdown
◆ Insulation resistance: ＞ 1.0x1014Ω
◆ Environment temperature: -30℃~90℃
◆ Weather proof performance:have good performanced after 1008 hours artifical climte aging test.

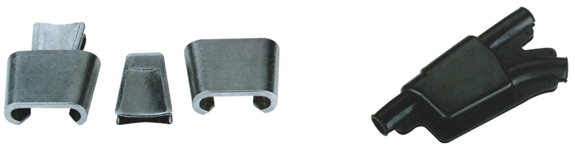

■ 產品分解圖 Product exploed view

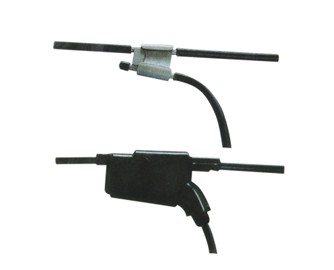

■安裝狀態圖 Installation picture
