產品詳細：

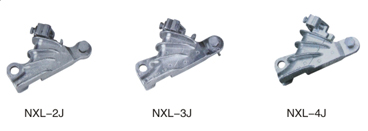

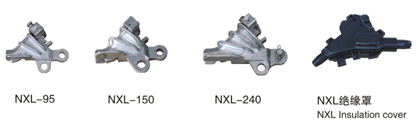

5.NXL 系列楔型鋁合金耐張線夾及絕緣罩 NXL Series aluminum alloy srtain clamp(wedge type) and insulation cover
■ 用途 Application
NXL 系列楔型耐張線夾適用于10KV及以下配電線路中，將架空絕緣鋁導或裸鋁導線固定在轉角或終端耐張桿的絕緣子上，從而將架空導線固定或拉緊，絕緣罩與耐張線夾本套使用，起絕緣防護作用。
■ 結構特點 Structure feature ■ 絕緣罩性能特點 Insulation cover performance feature
◆ 選用非磁性高強度抗氧化鋁合金材料制造，無電能損耗。
◆ 楔塊鎖緊結構，安裝簡便可靠
◆ 圓弧大面積抱緊，導線不易蠕變、握力
◆ Choose the unmagnetic chanracter high-intersity
oxidate-resistanle aluminum alloy,No waste electric energy
◆ Wedged-locked structure,easy-installation
◆ An are embrace the most part,conductor can’t change ,lange grip stregth. ◆ 工頻耐壓: ≥18kV保壓1分鐘不擊穿
◆ 絕緣電阻：＞1.0x1014Ω
◆ 環境溫度：-30℃~90℃
◆ Withstand voltage: ≥18kV keep voltage one minute not breakdown
◆ Insulation resistance: ＞ 1.0x1014Ω

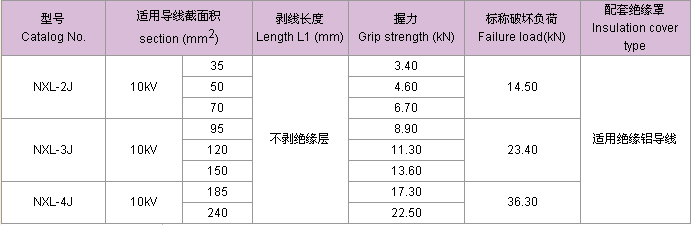

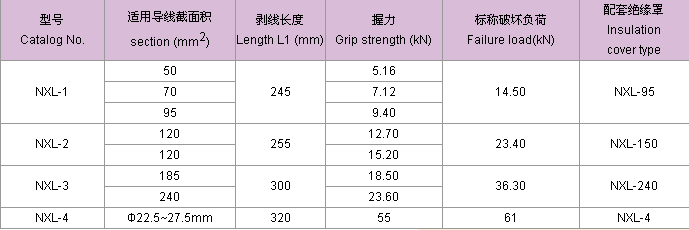

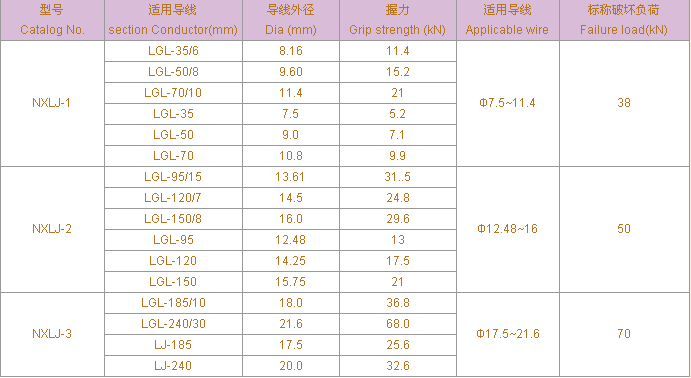

◆ Environment temperature: -30℃~90℃ 規格及技術參數 Specification
