產品詳細：
架空絕緣導線金具 Aerial insulation conductor fitting
在當今社會生活中，人們對電的依賴與日俱增，對電網供電的安全性要求也越來越高，尤其是城網的要求更高。因此，城網供電線路以絕緣電纜代替裸線是適時的有效措施之一。同時，金具也應采取對應的措施，使其具有絕緣功能的方法有兩種，一是應用絕緣材料，設計新的具有絕緣功能的金具。二是為金具設計絕緣罩達到絕緣效果。
Nowadays,more and more people rely on the electricity,and also pay more attentions to the safety of power supply of the electrical network.especially the town network.Therefore,one of the most effective measures to be taken is to adopt hte nsuloation conductor ins tead of the bare iwre in terms of power supply of town network.Meanwhile,fitting should also be taken the corresponding measureswhich has two insulating function:one is to use the insulating materials.and to design such kind of fitting whic has the insulating function;the other is to design the insulation cover so as to reach the effect of insulation.

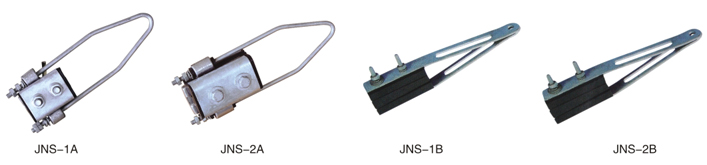

1.JNS 系列四芯集束型耐張線夾(錨固金具)JNS series four-core-centralized strain clamp(anchor clamp)
■ 用 途 Application
用于1kV及以下架空絕緣線路終端或線路耐張段兩端固定、拉緊絕緣線。
For use with the end of aerial insulation lines up to 1kV.tighten up the insulation conductor.
■ 特 點 Features
本線夾為四芯并溝并槽結構，將四根絕緣導線夾入(不剝絕緣)后擰緊螺栓，夾緊的四根絕緣導線便可成束狀，將拉桿錨固后，便可拉緊固定。
The clamp has designed four core parallel groove,after clamping the four insulation conductror (not remove the insulation layer),tighten up the bolt till stop.

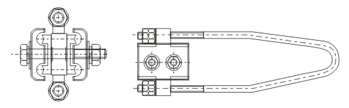

■ 外型及安裝尺寸 Dimension drawings

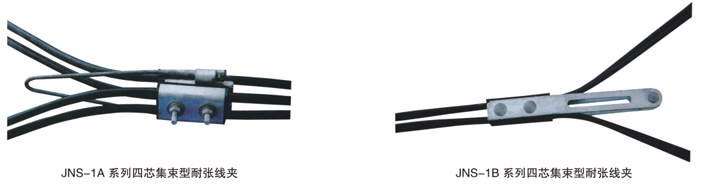

■ 安裝狀態圖 Installation picture
