產品詳細：

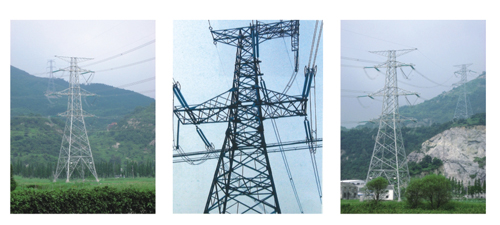

永裕公司加工生產的220kV～500kV電壓等級輸電金具產品，在越來越多的國家重點電網工程建設中發揮著重要作用。
YongYu company has been equped with all-round processing for the clamp products of 500kv and following voltage grading distrbution,and
also offer series clamp products of many countries major electrical network projects.

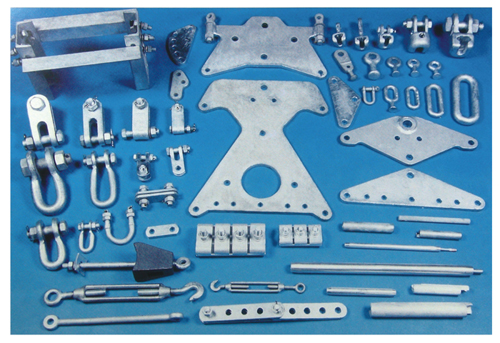

連接金具 Link Fitting

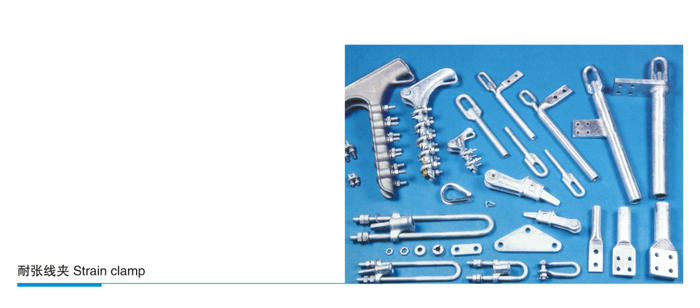

懸垂線夾 strain clamp

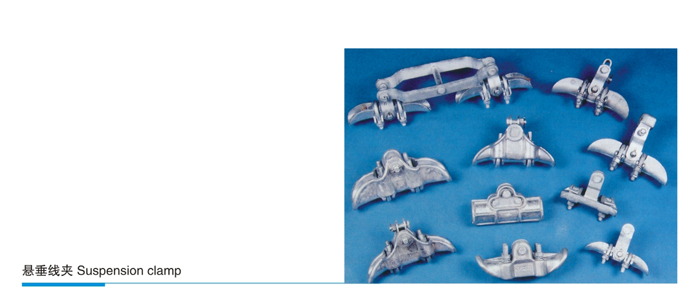

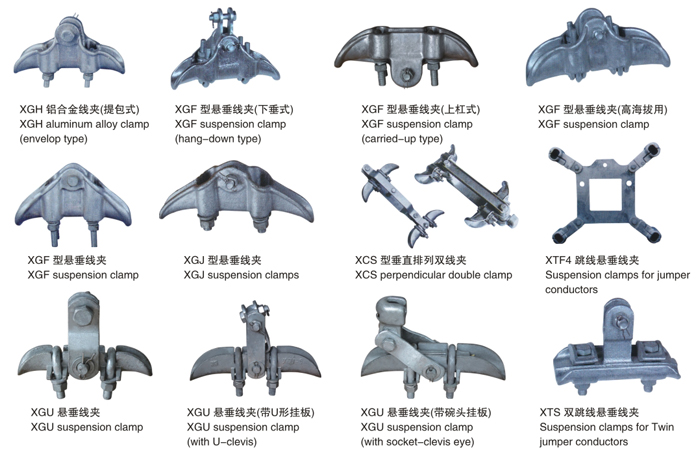

懸垂線夾主要用于架空電力線路，通過聯接金具將導線、避雷線懸掛在絕緣子串上或?qū)⒈芾拙€懸掛在桿塔上。用瑪鐵和鋁合金兩種材質制造。
產品型號中字母數字的意義為：
X－懸垂線夾 G－固定型 S－雙線夾 U－U型螺絲 J－加強型 H－鋁合金
F－防電暈型 K－上杠式 T－提包式 A－帶碗頭掛板 B－帶U型掛板 X－下垂式
懸垂線夾的懸垂角不小于25°，曲率半徑不小于被安裝導線直徑的8倍，對不同導線的握力與導線計算拉斷力的百分比值應不小于下表的數值。

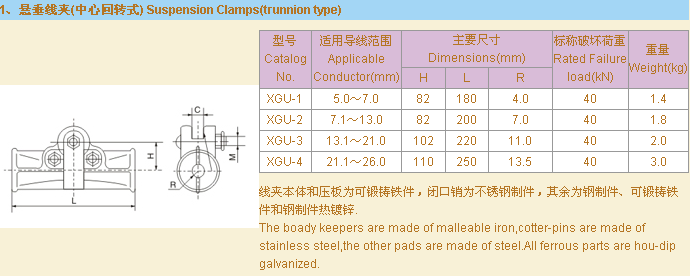

Suspension clamps are used to hang onductor or groun wire thorugh insulators or link fitting to tower arms or substation struturs.The clamps
are made of malleable iron or aluminum alloy.
The meanings of the letter & arabic figure in the atalog are shown as follow.
X－Suspension clamp G－fixed S－double clamp U－U bolt J－strength H－aluminum alloy
F－orona ontrol K－under axle type T－envelope type A－with a soket-clevis B－with U clevis X－h(huán)ang-down type
The suspension angle of suspension clamps is not less than 25°,the radius of curavature is not less than the dia of installed leads by 8-10,
and the perentage of the grip on different kinds of leads to the calculating capability of smap show in following table.

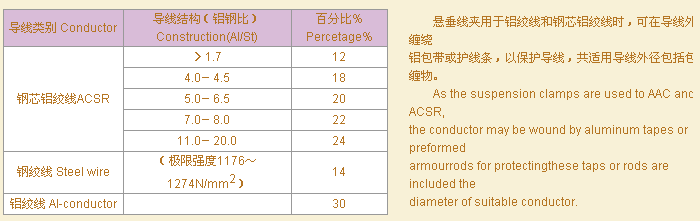

懸垂線夾握力與導線額定拉力的是分比表：
The percentage slip strength of suspension clamp to rated ultimate strength of conductors is shown in the following table.
