接續金具 Splicing Fitting
接續金具主要用于架空電力線路的導線、避雷線的接續和補修。按結構形式和安裝方法的不同，分為壓縮型、分為壓縮型、螺栓型和預型和預絞絲各三類：壓縮型又分為液位、爆壓和鉗壓三種。
產品型號字母和數字的意義為：
J-接續 D-搭接 X-補修 B-爆壓、并溝、補修、避雷線 T-橢圓、跳線
M-母線 Y-圓型、預絞絲 S-伸縮、設備
數字表示適用導線的大?。?
各種接續金具直流電阻大小等長導線直流電阻；載流溫升低于導線的溫升。壓縮型接續管對導線的握力不小于導線計算接斷力的95%。
Spelices are used for splicing or repairing of conductor and ground wire of overhead transmission lies.The splices may be compression type.bolt type performed armour rods in accordnce with the construction and mounting way.The compressive splices have hydraulic,explosive and notched type.
The meanings of letters Arabic figures in the catalog are shown as follow:
J-splice D-overlap joing X-repair B-explosion,paraller,repair or ground wire.
T-oval,jumper M-bus-bar Y-round,preformed S-filexibility equipment.
The arabic figures show size of conductor
The DC resistance of all splices must be less than that of the equi-length conductor,the temperature rise of all splices must be less than that of the splices conductor.The slip strenght of the compressive must be not less than 95% of the rated strength of conductor.

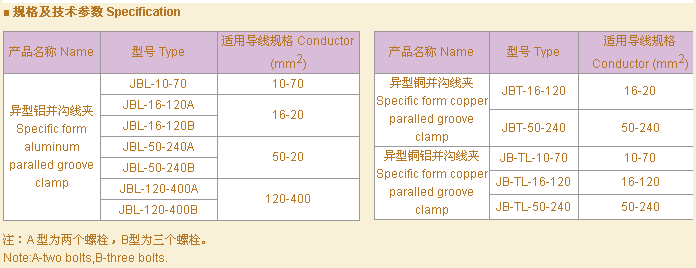

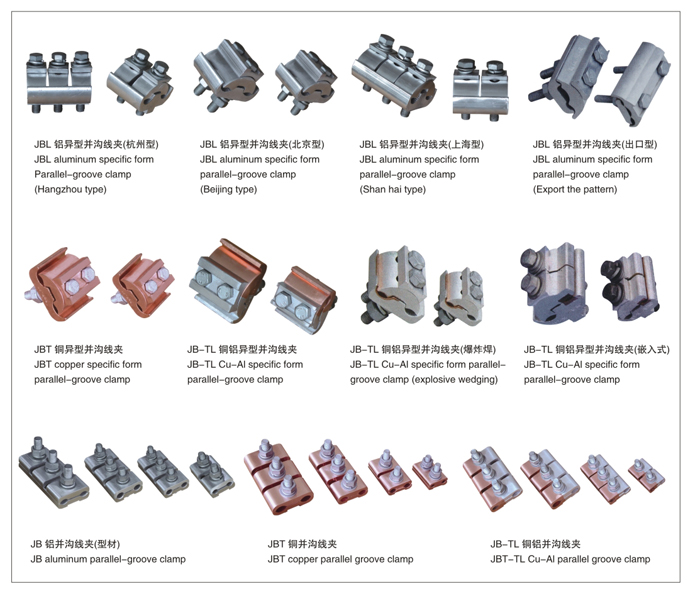

1.JBL、JBT、JB-TL系列異型并溝線夾及絕緣罩 JBL、JBT、JB-TL series parallel groove clamp specific form and insulation cover
■ 用 途 Application
JBL、JBT、JB-TL系列異型并溝線夾適用于架空電線路中導線 的非承力接續與分支，與絕緣罩配套使用起防護絕緣作用。
JBL,JBT,JB-TL series specific parallel groove clamp is suitable for unendure force splicing and branch on the aerial wire,being
used with insulation cover,It’s action is insulation protection.
■ 結構特點 Structure feature

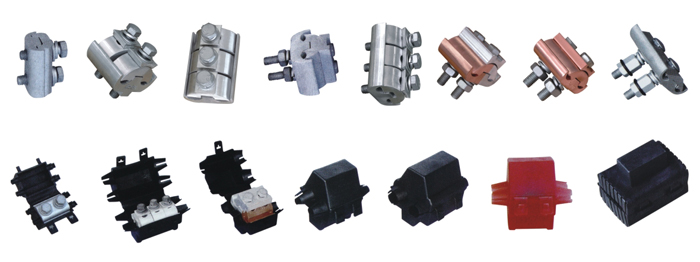

■ 絕緣罩性能特點 Insulation cover performance feature
◆ 選用抗氧化鋁合金材料
◆ 部件連體，安裝時不會掉件
◆ 圓弧大面積抱緊，導線不易蠕變
◆ Select oxidize-resistance aluminum alloy
◆ All parts connected with each other,it can’t l;lose parts during installation.
◆ An are embrance the most part,conductor can’t change. ◆ 工頻耐壓: ≥18kV保壓1分鐘不擊穿
◆ 絕緣電阻：＞1.0x1014Ω
◆ 環境溫度：-30℃~90℃
◆ 耐氣候性能：經人工氣候老化試驗1008小時后性能良好
◆ Withstand voltage: ≥18kV keep voltage one minute not breakdown
◆ Insulation resistance: ＞ 1.0x1014Ω
◆ Environment temperature: -30℃~90℃
◆ Weather proof performance:have good performanced after 1008 hours
artifical climte aging test.
