產品詳細：
防護金具 Protective Fitting

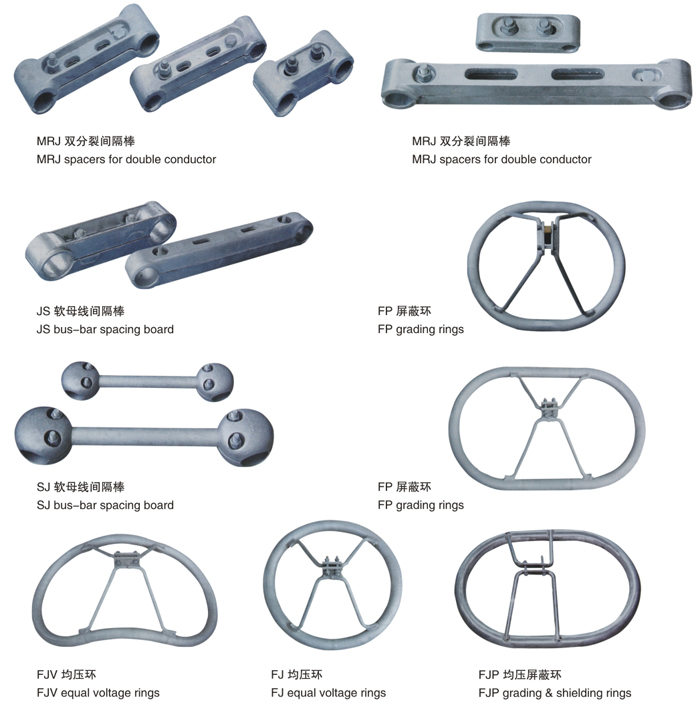

保護金具主要用于架空電力線路的導線、避雷線的振動幅度。以及330KV以上線路和變電所絕緣子串的均壓屏蔽等，如防振錘、間隔棒、均壓屏蔽環......
產品型號字母的意義為：
M-母線 R-軟導線 F-防護、封頭 Y-預絞絲 D-導線
J-間隔、均壓 Z-終端、阻尼 Q-球絞 G-鋼絞線
防振錘、間隔棒線夾與導線連接時，應根據使用情況可在導線外纏鋁包帶。
Protective fitting are used to restrain vibrantion of conductor and ground wire fovehead transmission lines. or to grade nd t shield the insulator string of 330KV and above transmission lines and substation.For example.dampers.spaceers grading and hielding rings......
M-Bus-bar R- cable F-Protection,end cap Y-preformed armor rod D-conductor J-space,voltage Z-Damper terminal
Q-ball joints G-steel wireium tapes as installing dampers and spacers on to it.
The conductor may be wounld by aluminum tapes as intalling dampers and spacers on it.

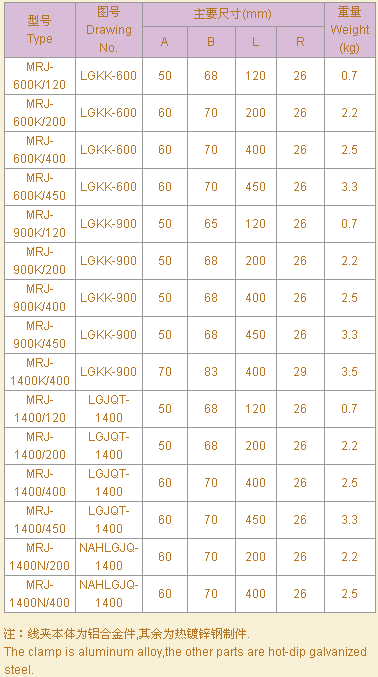

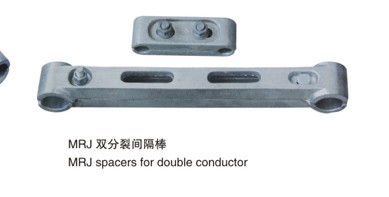

1. 雙分裂間隔棒
Spacers for double conductor
2.雙分裂間隔棒
Spacers for double bundle conductor
